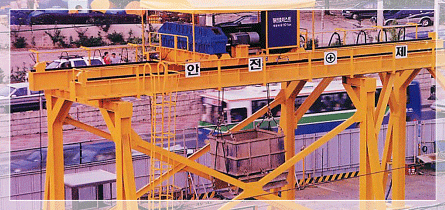

현재위치< 홈 < 회사소개 < 서브웨이버켓크레인 |
|
| |
 |
 |
| |
사양 |
| SPECIFICATION |
| CRAB TYPE |
DOUBLE RAIL TYPE |
| RATED LOAD |
10TON |
| TESTION LOAD |
12.5 TON |
| TRAVELLING LENGTH |
12.5M |
| HOISTING LIFTING |
30M |
| SPEED |
HOISTING |
35M/MIN |
| TRAVERSING |
12.5M/MIN |
| MOTOR |
HOISTING |
37KW ×4P×2SETS |
| TRAVERSING |
1.0KW×6P×2SETS |
| BRAKE |
HOISTING |
DC MAGNT |
| TRAVERSING |
AC MAGNT |
| WIRE ROPE |
(6×37) 20×4FALLS |
| POWER SUPPLY |
FESTOON CABLE TYPE |
| POWER SOURCE |
AC 3PH 380V 60Hz |
| CONTROL SOURCE |
AC 1PH 110V 60Hz |
| OPERATION METHOD |
BY PENDANT SWITCH |
| RUNWAY - RAIL |
15KG/M |
| BUCKET SPECIFICATION |
| CAPACITY |
10 TON |
| 최대내용적 |
3M3 |
| 적재내용물 |
비중 |
적재가능용적 |
적재가능중량 |
| 흙(건조) |
1300 |
3 M 3 |
3.9TON |
| 흙(습) |
1800 |
3 M 3 |
3.9TON |
| 모래(건조) |
1700 |
3 M 3 |
3.9TON |
| 모래(습) |
2000 |
3 M 3 |
3.9TON |
| 자갈(건조) |
1700 |
3 M 3 |
3.9TON |
| 자갈(습) |
2100 |
3 M 3 |
3.9TON |
| 모래섞인자갈(건조) |
2000 |
3 M 3 |
3.9TON |
| 모래섞인자갈(습) |
2300 |
3 M 3 |
3.9TON |
| 화강암 |
2700 |
3.3 M 3 |
3.9TON |
| MAX.= 2.7 ×3.3 (INCLUDE 10%) = 8.91 TON |
| OPEN & CLOSING |
MECHANICAL SYSTEM |
* 상기사항은 제품의 품질향상을 위해 변경될 수 있습니다. |
| |
|
|
|
